仓库使用阿里的镜像仓库

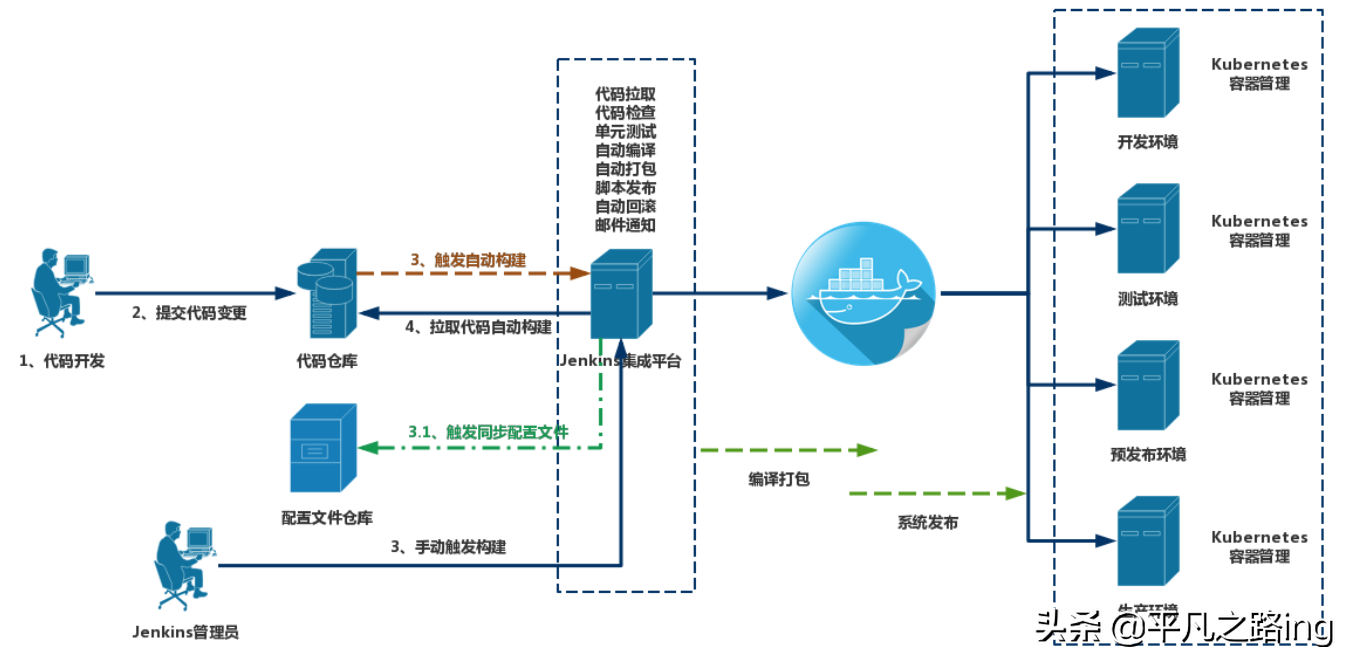

流程很简单，提交代码到不同的分支，触发通知到jenkins，jenkinspipeline会根据Jenkinsfile文件中定义k8s环境，动态生成一个jenkinsslave在不同k8s环境中构建镜像，推送镜像到仓库，然后在部署到对应k8s环境，部署结束后jenkinsslave会自动终止

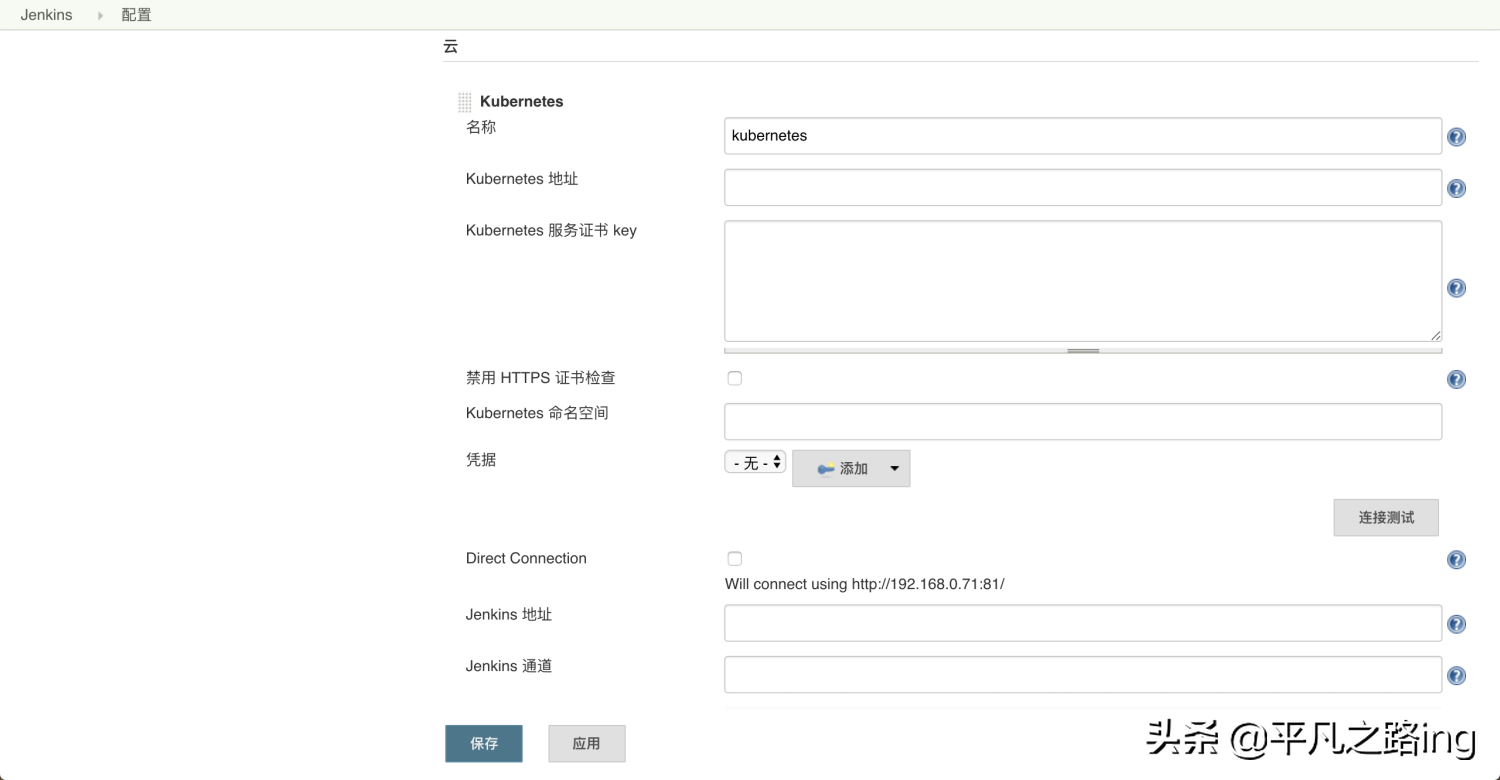

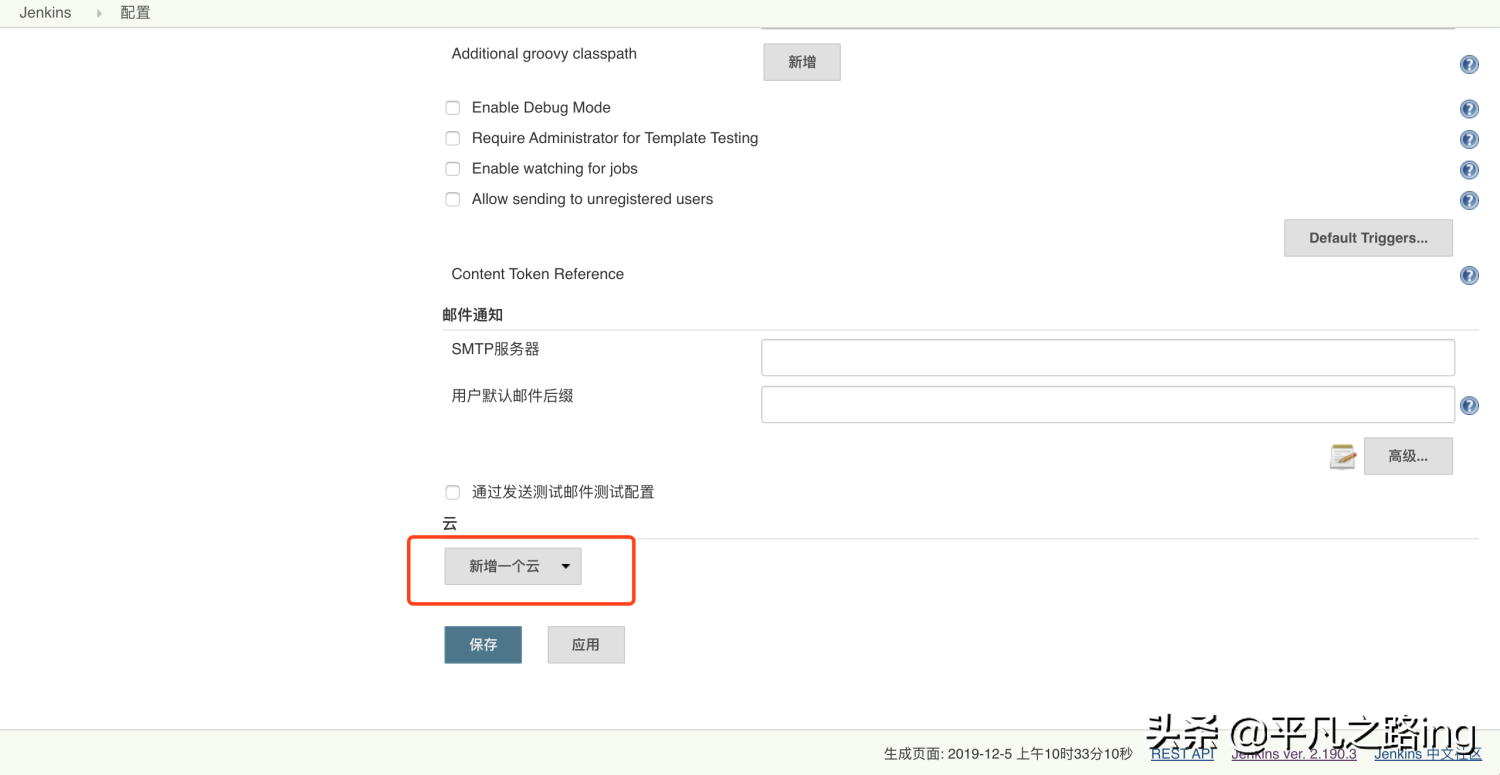

配置第一个k8s相关信息，过程中会用到认证k8sapiserver的key和凭证，所以我们先获取下需要的key和凭证（在要配置的k8smaster机器操作）

$cat/root/.kube/configapiVersion:v1clusters:-cluster:certificate-authority-data:LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRFNU1EWXdOakV3TWpZd09Wb1hEVEk1TURZd016RXdNall3T1Zvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBSlBSCmFnUlVKVytleDlKeTFZOXEzUVpNZk0wWnFJbkxjOE43RFVnZnM4TktlUVh2SUFCNkxxdjBSNFY4VUNnYnZ6dEMKVitxdElGNUM5bmE5VFQzT3hVNkUwQnVmWTcwTmJBZ2dPN0RTN1FvQVc3ZG5HUnBDTmNieWg5dytZYi9vbkNCdgo3M28vRi9scnhFZ01jNFhuYTR6OGhXbm5STmdjcVBSVnNyWGFiVSt6TStsbVZEaEpwWE96dnVmMmZRb3creGF4CndaWnVwUmF5VDBESHVHbmpaQnkrNnFwQVdZampqaE9WOUhGcTlQQUpMUXAzR2xZdklueFgxUkJscTYyVFdZMW8KcjIvTFBRTUhjOUV6VFlVN21Qb0laQ3dqa1dPTzZmc1NFVHpBTk9ad1NlSlBRSW5XV1NlQXlsWjA4V2tNWjdVcQpDNkZHVml1REFVbE1HczBMMlhzQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFFc1I5T2VSRW45NXdSaTA2UnI2SVhUcDhJeHkKSytmdFJyM1pZckZ5VWZZYTBWdU9Mc1NZdzByN1o5Zmk0ZUFlMEk4dnR2cWpqWWl6RzFnUFAyS3V4d0h4RmtJRApMQnlNRmRTSG5yVEVZeWo2NVFnbUtCWVpEZ0VkMnZpVnBTeHM4Y3dCZXgvT201VnErZnROanAwK2swaGdhV2xxCjBDZmtkbjM0MkY2bUhSZFNyeGg3eURleGNtNEtGck5OVnNPY0h5MEJhQXhwZ0JOUmErMG5oZ1dDbHh1M0F4OWgKaVRELzAyczRCcWZKTFZjZXk0Q2VnWW8zUDVDYWVjTTZSaTg4TVFKYlZ1OWx6RVZPUzlBRGNKZ0VkWkdHUFUyVwpEcHBhZXdZNjhSVVg1MG9ObXN2S2h1RGNCSWxyeHJ4T2J4Wk1wYm5hYldUMlFaKzM4ampEaDNwVmxhcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=server::{}users:-name:kubernetes-adminuser:client-certificate-data:LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4akNDQWRxZ0F3SUJBZ0lJSzZSZWRVQ2NNS0V3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB4T1RBMk1EWXhNREkyTURsYUZ3MHlNREEyTURVeE1ESTJNVEZhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTBrcW1jci9DNHBaSTgwUTAKTzBOaklRV1hPelQ0TmVPVFJQd0N1UW1CaDlZcUJ0QTBkZnJvVnRzT2JRTEdlWE5GUVlhRzM5V2ZsN292YURCNwp3Wm11WVo3alZKUm9BZmpldEg3d0lIN3pNYUdCbk1hN3RoTUNqWXBmdXRpQyszQm51cjFLRmFJR2FKcDNlK0NQCjAyVjdSVDJjUXFPbHVOVUtFSEl2UG15YTdKM0pHWUpLNFVBVEhQOVhIMVZNemVoc3N5ZjF5UTZZb1BxTTR1b08KVGVNN3g0NFcvS2hrWjBMWkhncnB5RDJQNlN2NGVoaGl6YTQrdUk1Si80OFhhVFJwMUxINmdGODVhalkwNXIybApQUW95dDFPTEdIVHZtRnA3ei9QMHBKbUJpcGQwcktBeFNJLzU5SU93elYyRFNpQmp4TjQwSWpKNWhidlczNHNFCmtHNTFTUUlEQVFBQm95Y3dKVEFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFFWGM0VUhiOVFMSisvU2t0S3dhOVpydVJ3THBhV0NVeE80Sgo1Mml0eHdZK3JLdE9WQVBsKzdNRjVmcWU3UUhmcW0yMjFmR1V6UW50VERpM1RjOVNsdUVDdjdxdHBCcHczZ1pYCnZpSmIvakRRTWwrdmhvZW95UlpiUmhWZG5kUU5lS1FoUzl4UEw3Rmx2d0pRUnNsWTlCdWJ4L3lsVC9KRElKcFcKRzJhanM4ZGNyWUlLeGlEbjdQSTZqeFB1OURRVUgraGVza1M5VXRwcUF3M3pBdjFCaG5kV2FEWUNQc293MnloVAp1RFNrWG9XVE9rTlQ2UDVWREdob3VZbzJ4emhJeDl4NWllMVpLOHlnODY5THZvZkJQNk5oRnZRNDRPQkFyR29JCnNJcDNJT0ZpaWJjVW1wVXNZNWJ2OEVXbjBNdXkxN1VjVTlvMkYvTnpuQ1hZV1JEVUViVT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=client-key-data:LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBMGtxbWNyL0M0cFpJODBRME8wTmpJUVdYT3pUNE5lT1RSUHdDdVFtQmg5WXFCdEEwCmRmcm9WdHNPYlFMR2VYTkZRWWFHMzlXZmw3b3ZhREI3d1ptdVlaN2pWSlJvQWZqZXRIN3dJSDd6TWFHQm5NYTcKdGhNQ2pZcGZ1dGlDKzNCbnVyMUtGYUlHYUpwM2UrQ1AwMlY3UlQyY1FxT2x1TlVLRUhJdlBteWE3SjNKR1lKSwo0VUFUSFA5WEgxVk16ZWhzc3lmMXlRNllvUHFNNHVvT1RlTTd4NDRXL0toa1owTFpIZ3JweUQyUDZTdjRlaGhpCnphNCt1STVKLzQ4WGFUUnAxTEg2Z0Y4NWFqWTA1cjJsUFFveXQxT0xHSFR2bUZwN3ovUDBwSm1CaXBkMHJLQXgKU0kvNTlJT3d6VjJEU2lCanhONDBJako1aGJ2VzM0c0VrRzUxU1FJREFRQUJBb0lCQUE3bXcweTJVZlVFZVQ3agp3bC9Bc3JHUVY5c1dNZEIvdzl2TGo5WFUycHpwakNqWGNDQThHMktzT3lWMllPSVNUUUlMcWxzS0pEajROSXZKCmc3dUFURjhXaHoxakZzdXMrdnNIVTdTNXlqbm1HKzBrR0FFYTc3OWY0dEMycnZGcVVhOWw0bTRPQVM1QVk5OGYKVnBIQVN5L280YjNISXVNcUZZQjgxdVF4aGZqbVJHTWJ3dFdRM090dUU1d2xQRDJwOFBqTElaQVNsVTZ2RlpoQQpMWCs0ZjIyMWRjSkxTVGhqTDFiVHFPM1NkazE3WjZOV1M1Ym9TMFptY0JSOFhLUHNqUHFVek5zRFVxeCs1cDdKCkFXVGNlYjB4dWZYTldDV3Y3N3NUcTBjdyt6UXNwbVZwbFkzMjA4d0c5Tm9FYm5hMGFNQ1ZacG1oK3BSR2xOelkKRlNZNU9rRUNnWUVBMGxLcjI2S3IvMU1KcGFGMHRtWWNHcVRzd093bklBMzBNemk2blN5SVd1Q21qRWs3ZU5zSgpTRUk5cWRPRzhhWGw3VGZpa2VYUko1b3MxcDFZZzh2TUdpam01NGI3ejYybFZRUWtsOWZPSlVGM1YzQkgyR2p2CjRpOFZVTUl5ZmNSRmZUUFZEeGtKbHZtdnZCS0kwZU9UV0daVmFxb1AzZ0d0SW5lVDlmbEgwUTBDZ1lFQS8vWTgKbzZaelRtejIyVWVXZW5aemlNOHBxRHBqVU5DRnlKemJqajNvN1ZsTGRSc0FybnpFZnVNaUo5YjZ2dVpaWXQzRwp2bEZFMDBiYnNQWmRVbzArenJvSEZMK2JqQ1QrODl1UUFJRHFHcGtyYUdIZ0IxelZyMHF2L0NXajlnbzkrdUxhCjJKQk5ud1RSczlsbzE1ZzV1YnJPRWFBNzlBaExEeEFuZFA3Z0RpMENnWUFyODBpa2NmN2RNUDRBRlpndEVYTm8KQWZUVGI4WFJSZmsweHZNQUt6RW5SSENwT2hocWJlTW5yV2Z6V0JlSDRiSUZlenNtWDg3d0pxQ2VERzFWeFQyVwpiZHVxb0NONHg0R1lIWENFSm4yV2ZYS3gyKzIzaEY0MGRzQk9pdlpBSDhhaG5qWTBuSGZMaTh1MFVtOHk1UXFDClc0Z1g3UWU1emNIZlJQdXZWL013OVFLQmdRQy8rKzFYd2cxU2thQkZNTkRKWWZjZWNtUUlibUwzeHEvUjNQVkIKSjJhQ1FDdTgxbGdZaURUS0I0c2kzcmlNWHpKRVdad3NPOENueDhvWVhYRjU3YjlpUjEzd1RoZFpjcFpZU2lNawpmWTBhRGpEa3hpVEc0UGJWMSt0UDhOdWVPK2hwT2FaME1TaEhVZElJVjlXdmY5b3NXTlVmbTFQY29pdktUSStMCnpYQTRzUUtCZ0ZsUnpoeDlYczJ2L1h1VGl0NE1mNUpMU2ppNk93c3pZVXNmTzVMQ1BVbGQrcjA5dmFsS0tPQlcKU1FUVDhTdnBpMzZhQVFTV0xCUUdVYkh2VlJ0QkJHOWxiY2JSSHlla1RrYksxTEwxVk0zKzdtRXZCUDFZZU9qZQpwWkRlTWcrZWQyY3F5MDJhZWwxbGhBK3dJRmlnUzV5bGY0Z25paFBnMVZ2WmJIUGIzREdGCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

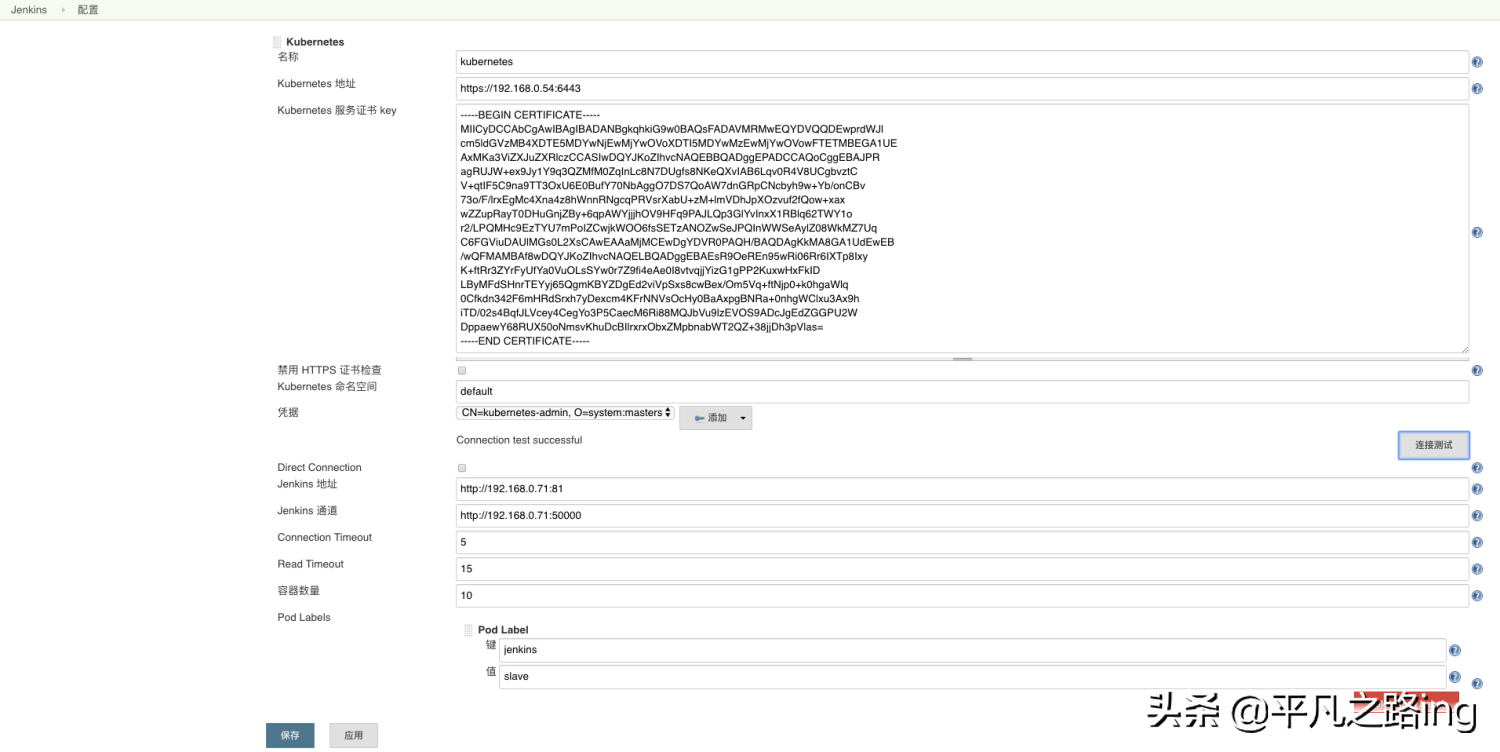

获取/root/.kube/config中certificate-authority-data的内容并转化成base64encoded文件,将生成的文件内容填写到jenkinskubernetes的Kubernetes服务证书key中

$echoLS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRFNU1EWXdOakV3TWpZd09Wb1hEVEk1TURZd016RXdNall3T1Zvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBSlBSCmFnUlVKVytleDlKeTFZOXEzUVpNZk0wWnFJbkxjOE43RFVnZnM4TktlUVh2SUFCNkxxdjBSNFY4VUNnYnZ6dEMKVitxdElGNUM5bmE5VFQzT3hVNkUwQnVmWTcwTmJBZ2dPN0RTN1FvQVc3ZG5HUnBDTmNieWg5dytZYi9vbkNCdgo3M28vRi9scnhFZ01jNFhuYTR6OGhXbm5STmdjcVBSVnNyWGFiVSt6TStsbVZEaEpwWE96dnVmMmZRb3creGF4CndaWnVwUmF5VDBESHVHbmpaQnkrNnFwQVdZampqaE9WOUhGcTlQQUpMUXAzR2xZdklueFgxUkJscTYyVFdZMW8KcjIvTFBRTUhjOUV6VFlVN21Qb0laQ3dqa1dPTzZmc1NFVHpBTk9ad1NlSlBRSW5XV1NlQXlsWjA4V2tNWjdVcQpDNkZHVml1REFVbE1HczBMMlhzQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFFc1I5T2VSRW45NXdSaTA2UnI2SVhUcDhJeHkKSytmdFJyM1pZckZ5VWZZYTBWdU9Mc1NZdzByN1o5Zmk0ZUFlMEk4dnR2cWpqWWl6RzFnUFAyS3V4d0h4RmtJRApMQnlNRmRTSG5yVEVZeWo2NVFnbUtCWVpEZ0VkMnZpVnBTeHM4Y3dCZXgvT201VnErZnROanAwK2swaGdhV2xxCjBDZmtkbjM0MkY2bUhSZFNyeGg3eURleGNtNEtGck5OVnNPY0h5MEJhQXhwZ0JOUmErMG5oZ1dDbHh1M0F4OWgKaVRELzAyczRCcWZKTFZjZXk0Q2VnWW8zUDVDYWVjTTZSaTg4TVFKYlZ1OWx6RVZPUzlBRGNKZ0VkWkdHUFUyVwpEcHBhZXdZNjhSVVg1MG9ObXN2S2h1RGNCSWxyeHJ4T2J4Wk1wYm5hYldUMlFaKzM4ampEaDNwVmxhcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=|base64-d/tmp/$cat/tmp/0BAQsFADAVMRMwEQYDVQQDEwprdWJlcm5ldGVzMB4XDTE5MDYwNjEwMjYwOVoXDTI5MDYwMzEwMjYwOVowFTETMBEGA1UEAxMKa3ViZXJuZXRlczCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAJPRagRUJW+ex9Jy1Y9q3QZMfM0ZqInLc8N7DUgfs8NKeQXvIAB6Lqv0R4V8UCgbvztCV+qtIF5C9na9TT3OxU6E0BufY70NbAggO7DS7QoAW7dnGRpCNcbyh9w+Yb/onCBv73o/F/lrxEgMc4Xna4z8hWnnRNgcqPRVsrXabU+zM+lmVDhJpXOzvuf2fQow+xaxwZZupRayT0DHuGnjZBy+6qpAWYjjjhOV9HFq9PAJLQp3GlYvInxX1RBlq62TWY1or2/LPQMHc9EzTYU7mPoIZCwjkWOO6fsSETzANOZwSeJPQInWWSeAylZ08WkMZ7UqC6FGViuDAUlMGs0L2XsCAwEAAaMjMCEwDgYDVR0PAQH/BAQDAgKkMA8GA1UdEwEB/wQFMAMBAf8wDQYJKoZIhvcNAQELBQADggEBAEsR9OeREn95wRi06Rr6IXTp8IxyK+ftRr3ZYrFyUfYa0VuOLsSYw0r7Z9fi4eAe0I8vtvqjjYizG1gPP2KuxwHxFkIDLByMFdSHnrTEYyj65QgmKBYZDgEd2viVpSxs8cwBex/Om5Vq+ftNjp0+k0hgaWlq0Cfkdn342F6mHRdSrxh7yDexcm4KFrNNVsOcHy0BaAxpgBNRa+0nhgWClxu3Ax9hiTD/02s4BqfJLVcey4CegYo3P5CaecM6Ri88MQJbVu9lzEVOS9ADcJgEdZGGPU2WDppaewY68RUX50oNmsvKhuDcBIlrxrxObxZMpbnabWT2QZ+38jjDh3pVlas=-----ENDCERTIFICATE-----

获取/root/.kube/config中client-certificate-data和client-key-data的内容并转化成base64encoded文件

$echoLS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4akNDQWRxZ0F3SUJBZ0lJSzZSZWRVQ2NNS0V3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB4T1RBMk1EWXhNREkyTURsYUZ3MHlNREEyTURVeE1ESTJNVEZhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTBrcW1jci9DNHBaSTgwUTAKTzBOaklRV1hPelQ0TmVPVFJQd0N1UW1CaDlZcUJ0QTBkZnJvVnRzT2JRTEdlWE5GUVlhRzM5V2ZsN292YURCNwp3Wm11WVo3alZKUm9BZmpldEg3d0lIN3pNYUdCbk1hN3RoTUNqWXBmdXRpQyszQm51cjFLRmFJR2FKcDNlK0NQCjAyVjdSVDJjUXFPbHVOVUtFSEl2UG15YTdKM0pHWUpLNFVBVEhQOVhIMVZNemVoc3N5ZjF5UTZZb1BxTTR1b08KVGVNN3g0NFcvS2hrWjBMWkhncnB5RDJQNlN2NGVoaGl6YTQrdUk1Si80OFhhVFJwMUxINmdGODVhalkwNXIybApQUW95dDFPTEdIVHZtRnA3ei9QMHBKbUJpcGQwcktBeFNJLzU5SU93elYyRFNpQmp4TjQwSWpKNWhidlczNHNFCmtHNTFTUUlEQVFBQm95Y3dKVEFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFFWGM0VUhiOVFMSisvU2t0S3dhOVpydVJ3THBhV0NVeE80Sgo1Mml0eHdZK3JLdE9WQVBsKzdNRjVmcWU3UUhmcW0yMjFmR1V6UW50VERpM1RjOVNsdUVDdjdxdHBCcHczZ1pYCnZpSmIvakRRTWwrdmhvZW95UlpiUmhWZG5kUU5lS1FoUzl4UEw3Rmx2d0pRUnNsWTlCdWJ4L3lsVC9KRElKcFcKRzJhanM4ZGNyWUlLeGlEbjdQSTZqeFB1OURRVUgraGVza1M5VXRwcUF3M3pBdjFCaG5kV2FEWUNQc293MnloVAp1RFNrWG9XVE9rTlQ2UDVWREdob3VZbzJ4emhJeDl4NWllMVpLOHlnODY5THZvZkJQNk5oRnZRNDRPQkFyR29JCnNJcDNJT0ZpaWJjVW1wVXNZNWJ2OEVXbjBNdXkxN1VjVTlvMkYvTnpuQ1hZV1JEVUViVT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=|base64-d/tmp/$echoLS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBMGtxbWNyL0M0cFpJODBRME8wTmpJUVdYT3pUNE5lT1RSUHdDdVFtQmg5WXFCdEEwCmRmcm9WdHNPYlFMR2VYTkZRWWFHMzlXZmw3b3ZhREI3d1ptdVlaN2pWSlJvQWZqZXRIN3dJSDd6TWFHQm5NYTcKdGhNQ2pZcGZ1dGlDKzNCbnVyMUtGYUlHYUpwM2UrQ1AwMlY3UlQyY1FxT2x1TlVLRUhJdlBteWE3SjNKR1lKSwo0VUFUSFA5WEgxVk16ZWhzc3lmMXlRNllvUHFNNHVvT1RlTTd4NDRXL0toa1owTFpIZ3JweUQyUDZTdjRlaGhpCnphNCt1STVKLzQ4WGFUUnAxTEg2Z0Y4NWFqWTA1cjJsUFFveXQxT0xHSFR2bUZwN3ovUDBwSm1CaXBkMHJLQXgKU0kvNTlJT3d6VjJEU2lCanhONDBJako1aGJ2VzM0c0VrRzUxU1FJREFRQUJBb0lCQUE3bXcweTJVZlVFZVQ3agp3bC9Bc3JHUVY5c1dNZEIvdzl2TGo5WFUycHpwakNqWGNDQThHMktzT3lWMllPSVNUUUlMcWxzS0pEajROSXZKCmc3dUFURjhXaHoxakZzdXMrdnNIVTdTNXlqbm1HKzBrR0FFYTc3OWY0dEMycnZGcVVhOWw0bTRPQVM1QVk5OGYKVnBIQVN5L280YjNISXVNcUZZQjgxdVF4aGZqbVJHTWJ3dFdRM090dUU1d2xQRDJwOFBqTElaQVNsVTZ2RlpoQQpMWCs0ZjIyMWRjSkxTVGhqTDFiVHFPM1NkazE3WjZOV1M1Ym9TMFptY0JSOFhLUHNqUHFVek5zRFVxeCs1cDdKCkFXVGNlYjB4dWZYTldDV3Y3N3NUcTBjdyt6UXNwbVZwbFkzMjA4d0c5Tm9FYm5hMGFNQ1ZacG1oK3BSR2xOelkKRlNZNU9rRUNnWUVBMGxLcjI2S3IvMU1KcGFGMHRtWWNHcVRzd093bklBMzBNemk2blN5SVd1Q21qRWs3ZU5zSgpTRUk5cWRPRzhhWGw3VGZpa2VYUko1b3MxcDFZZzh2TUdpam01NGI3ejYybFZRUWtsOWZPSlVGM1YzQkgyR2p2CjRpOFZVTUl5ZmNSRmZUUFZEeGtKbHZtdnZCS0kwZU9UV0daVmFxb1AzZ0d0SW5lVDlmbEgwUTBDZ1lFQS8vWTgKbzZaelRtejIyVWVXZW5aemlNOHBxRHBqVU5DRnlKemJqajNvN1ZsTGRSc0FybnpFZnVNaUo5YjZ2dVpaWXQzRwp2bEZFMDBiYnNQWmRVbzArenJvSEZMK2JqQ1QrODl1UUFJRHFHcGtyYUdIZ0IxelZyMHF2L0NXajlnbzkrdUxhCjJKQk5ud1RSczlsbzE1ZzV1YnJPRWFBNzlBaExEeEFuZFA3Z0RpMENnWUFyODBpa2NmN2RNUDRBRlpndEVYTm8KQWZUVGI4WFJSZmsweHZNQUt6RW5SSENwT2hocWJlTW5yV2Z6V0JlSDRiSUZlenNtWDg3d0pxQ2VERzFWeFQyVwpiZHVxb0NONHg0R1lIWENFSm4yV2ZYS3gyKzIzaEY0MGRzQk9pdlpBSDhhaG5qWTBuSGZMaTh1MFVtOHk1UXFDClc0Z1g3UWU1emNIZlJQdXZWL013OVFLQmdRQy8rKzFYd2cxU2thQkZNTkRKWWZjZWNtUUlibUwzeHEvUjNQVkIKSjJhQ1FDdTgxbGdZaURUS0I0c2kzcmlNWHpKRVdad3NPOENueDhvWVhYRjU3YjlpUjEzd1RoZFpjcFpZU2lNawpmWTBhRGpEa3hpVEc0UGJWMSt0UDhOdWVPK2hwT2FaME1TaEhVZElJVjlXdmY5b3NXTlVmbTFQY29pdktUSStMCnpYQTRzUUtCZ0ZsUnpoeDlYczJ2L1h1VGl0NE1mNUpMU2ppNk93c3pZVXNmTzVMQ1BVbGQrcjA5dmFsS0tPQlcKU1FUVDhTdnBpMzZhQVFTV0xCUUdVYkh2VlJ0QkJHOWxiY2JSSHlla1RrYksxTEwxVk0zKzdtRXZCUDFZZU9qZQpwWkRlTWcrZWQyY3F5MDJhZWwxbGhBK3dJRmlnUzV5bGY0Z25paFBnMVZ2WmJIUGIzREdGCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==|base64-d/tmp/

将上面生成的文件转换为P12认证文件，并下载至本地；生成过程中设置的密码要记住，后面有用

$opensslpkcs12-export-out/tmp//tmp//tmp//tmp/:Verifying-EnterExportPassword:$sz/tmp/

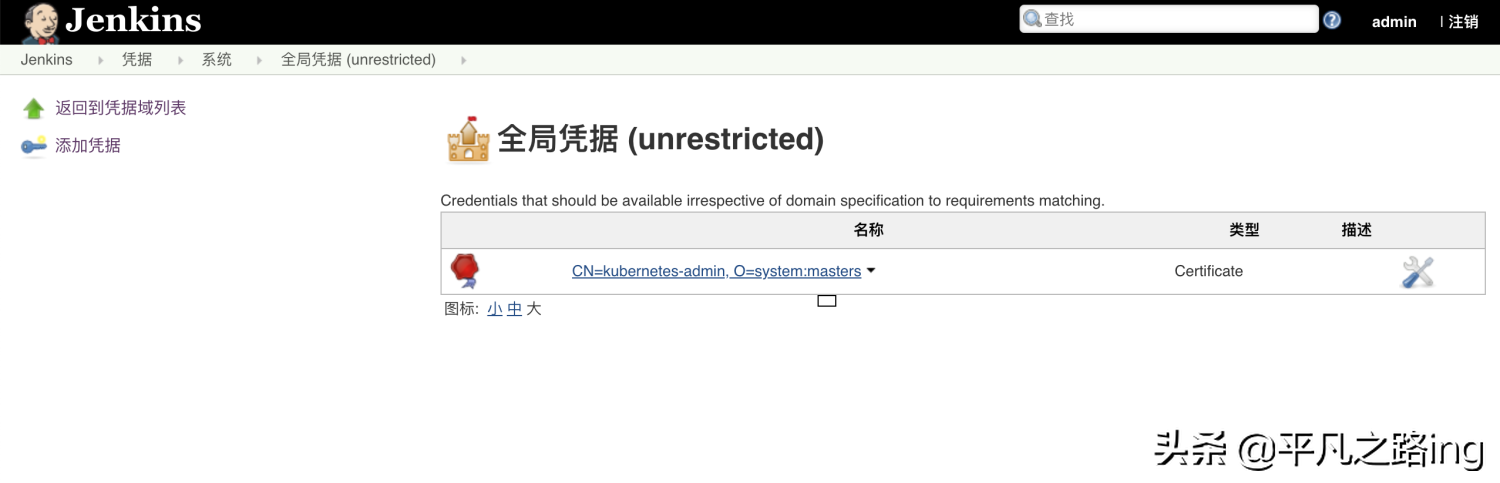

然后回到jenkins配置全局凭据

配置第二个k8s相关信息，过程和配置第一个k8s一样，不再过多说明了

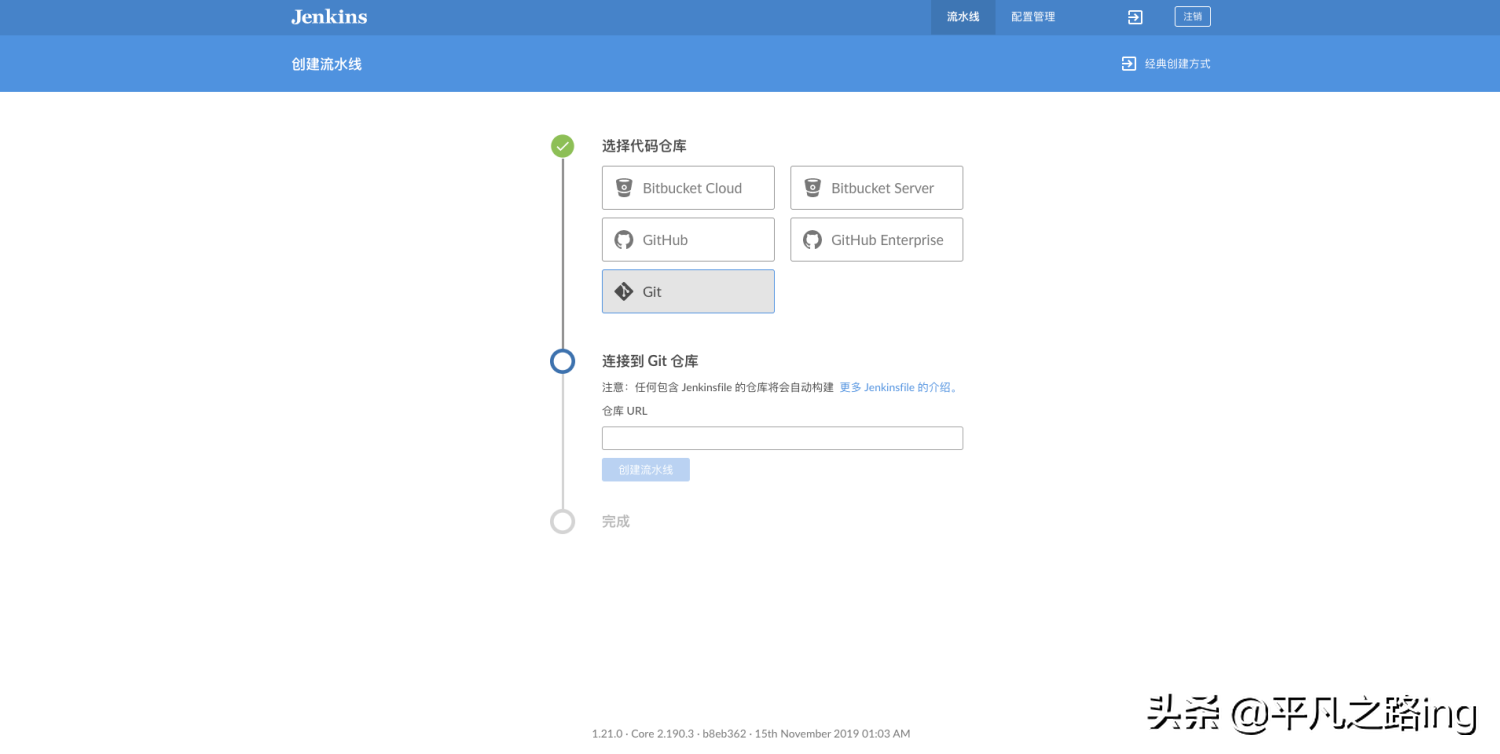

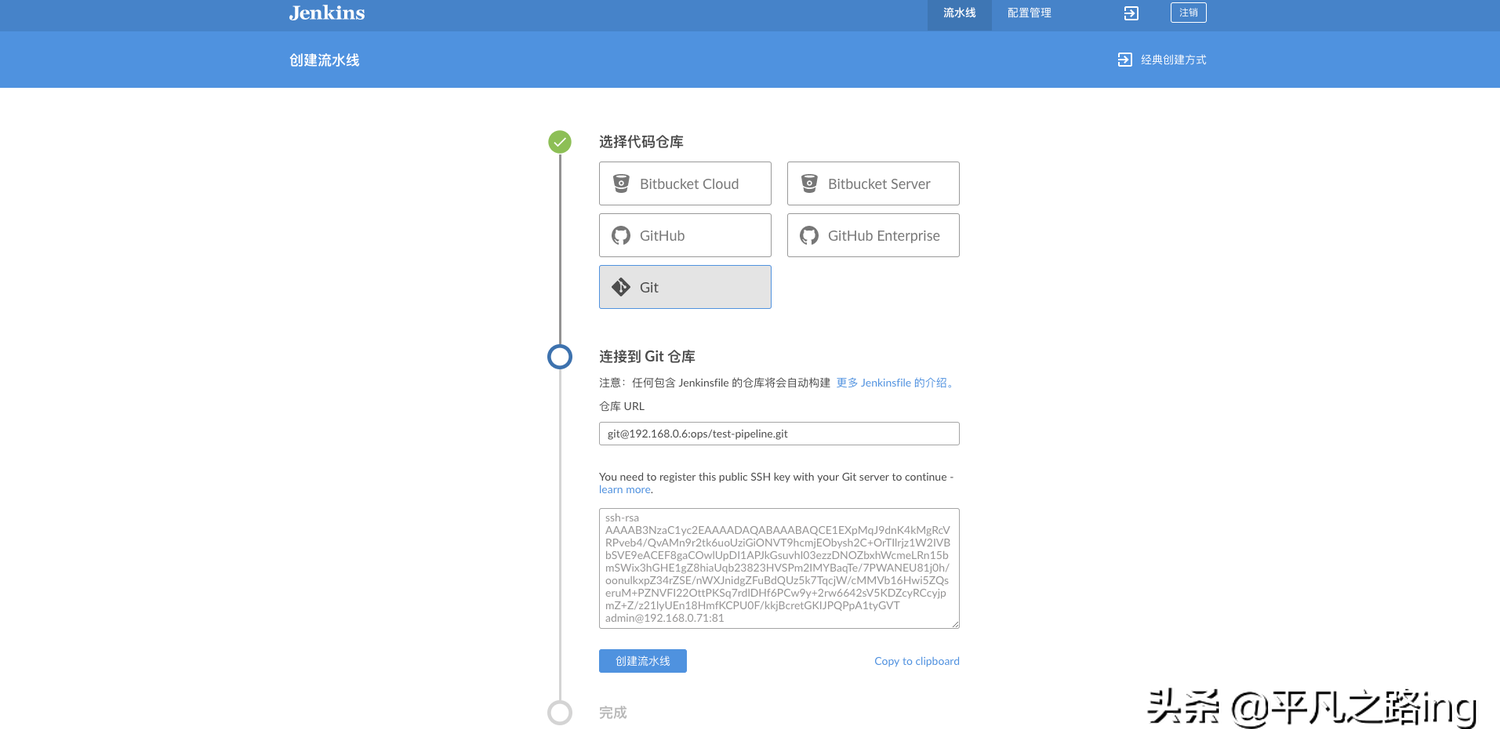

打开BuleOcean，请创建你的第一个流水线，选择代码仓库为Git

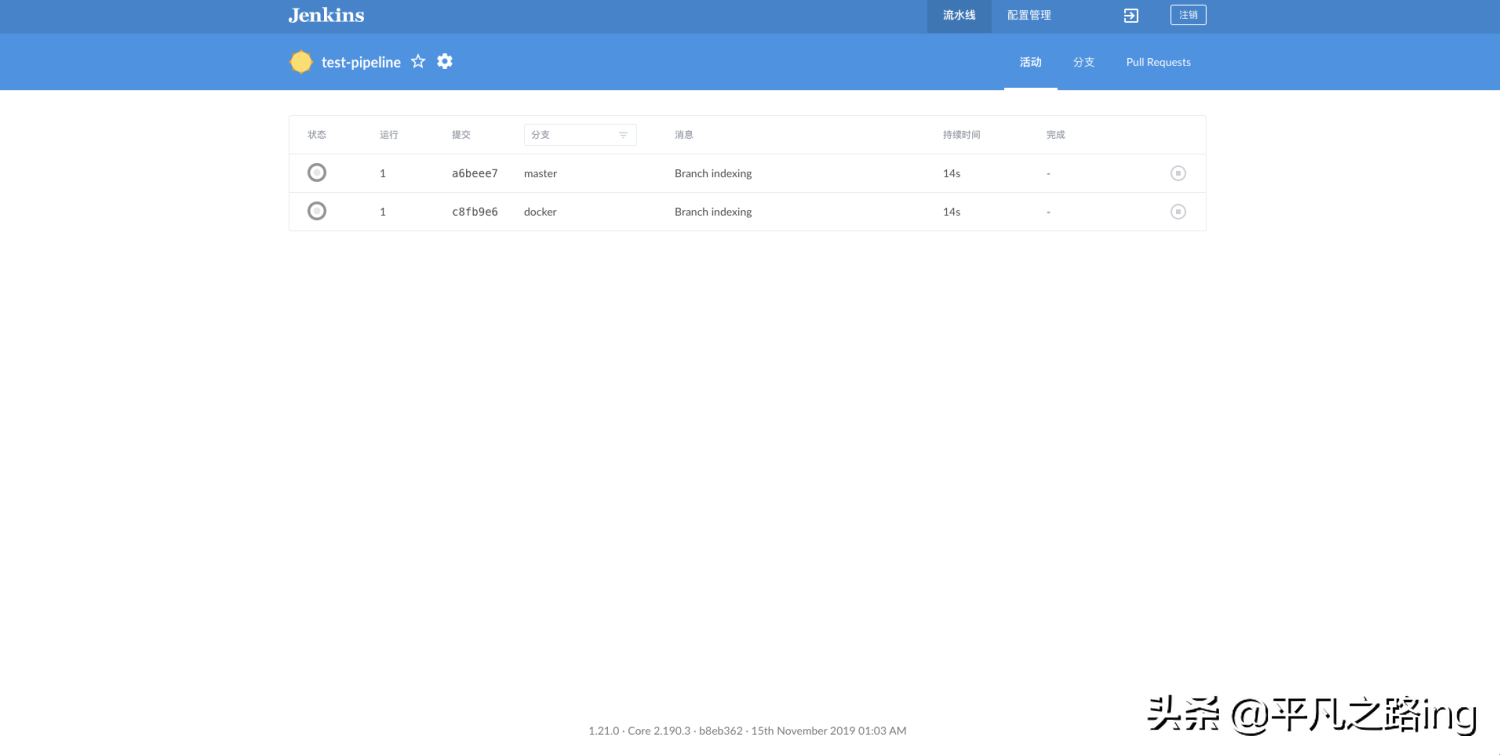

创建流水线时候，Jenkins会自动检测git项目各个分支的根目录是否存在文件“Jenkinsfile”，如果存在就生成一个分支流水线，下图中生成了分支master和分支docker流水线

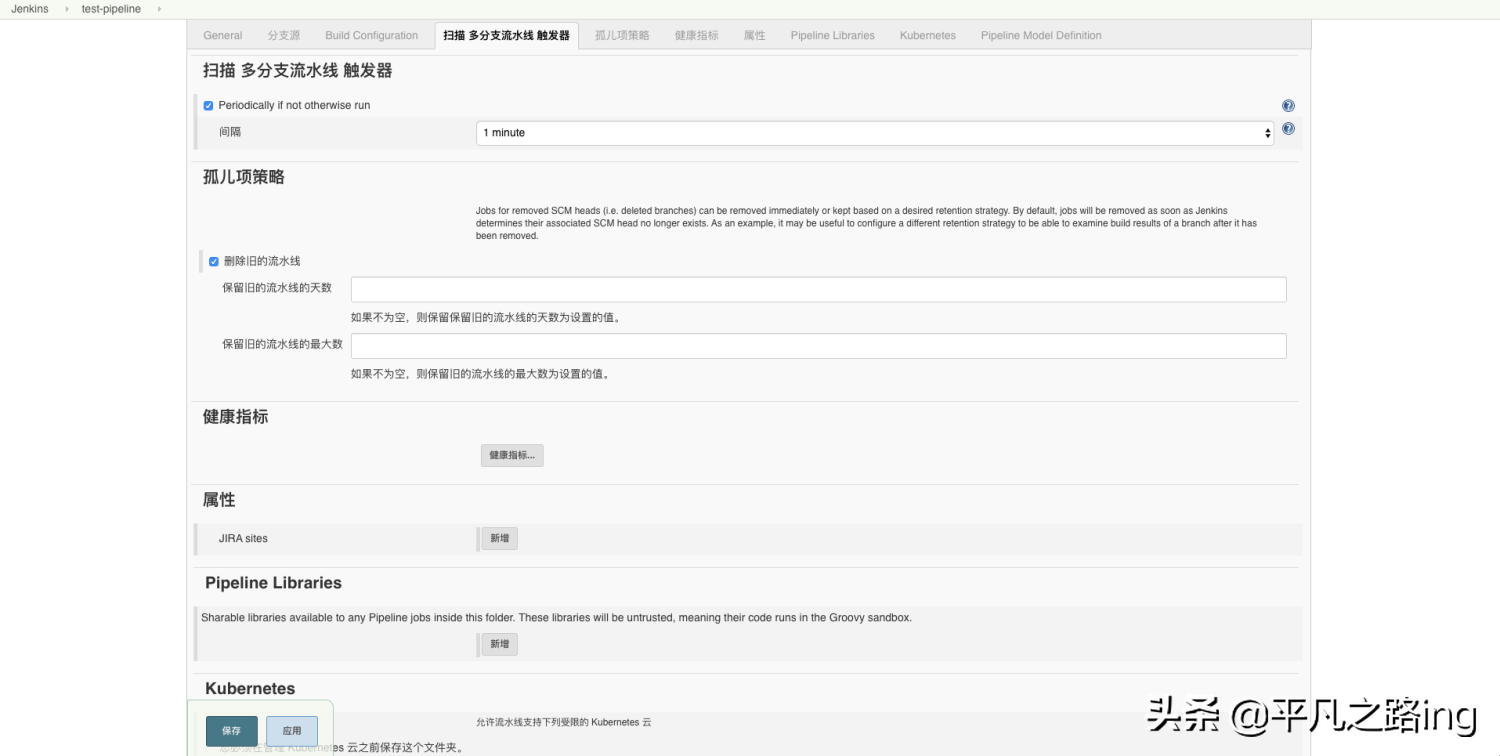

到目前为止流水线已经配置完成，但是还无法实现自动触发构建，需要配置扫描多分支流水线触发器；设置1分钟检测一次

触发构建之前我们先看下流水线执行构建部署的Jenkinsfile文件内容，文件保存在git项目的各个分支

deflabel="slave-${().toString()}"podTemplate(cloud:'kubernetes',label:label,containers:[containerTemplate(name:'docker',image:'docker',command:'cat',ttyEnabled:true),containerTemplate(name:'kubectl',image:'bitnami/kubectl',command:'cat',ttyEnabled:true),],volumes:[hostPathVolume(mountPath:'/root/.kube',hostPath:'/root/.kube'),hostPathVolume(mountPath:'/var/run/',hostPath:'/var/run/')]){node(label){defmyRepo=checkoutscmdefgitCommit=_COMMITdefgitBranch=_BRANCHdefimageTag=sh(script:"gitrev-parse--shortHEAD",returnStdout:true).trim()defdockerRegistryUrl=""defimagepoint="addnewer-dsc/approval-fe"defimage="${dockerRegistryUrl}/${imagepoint}"stage('构建Docker镜像'){withCredentials([[$class:'UsernamePasswordMultiBinding',credentialsId:'DockerRegistry',usernameVariable:'DOCKER_HUB_USER',passwordVariable:'DOCKER_HUB_PASSWORD']]){container('docker'){echo"3.构建Docker镜像阶段"sh"""dockerlogin${dockerRegistryUrl}-u${DOCKER_HUB_USER}-p${DOCKER_HUB_PASSWORD}dockerbuild-t${image}:${imageTag}.dockerpush${image}:${imageTag}"""}}}stage('Runkubectl'){container('kubectl'){sh"""sed-i"s${image}IMAGE_TAGg"*.yamlkubectlapply-f."""}}}}

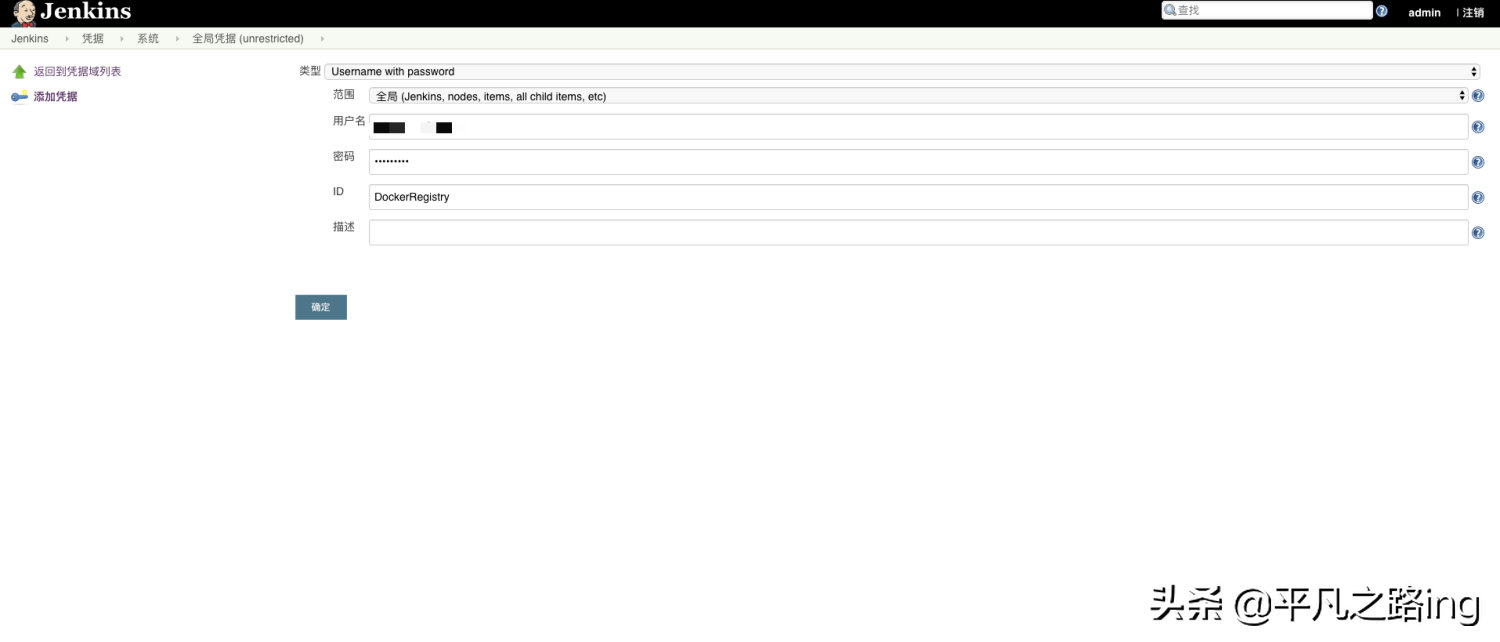

了解了上面的Jenkinsfile流水线文件的执行流程后，可以看到我们还没有在jenkins中添加docker仓库的全局凭据，下面我们添加

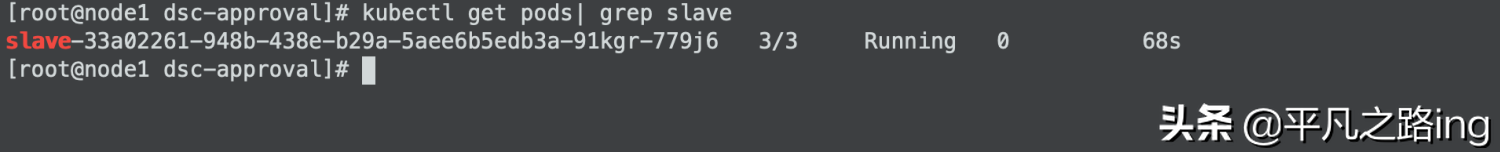

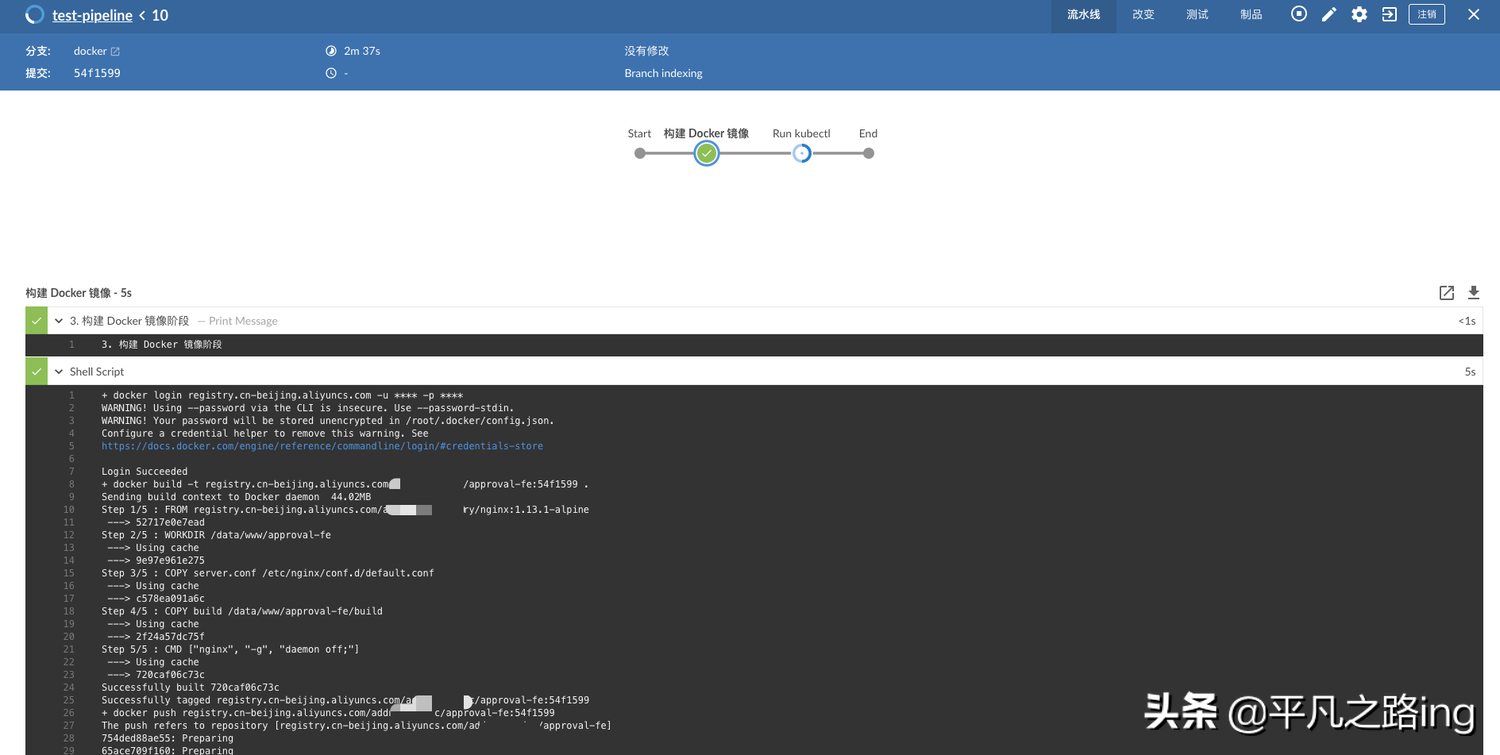

提交任何变更到git项目，1分钟后jenkins会自动检测到变更，开始执行流水线；这里我随便提交下测试代码，就可以看到流水开始执行了
